Main specifications
| Engine | |
| Model | Cummins |
| Type | Inline |
| Suction | Turbocharged |
| Number of cylinders | 4 |
| Cylinder diameter | 98mm |
| Piston stroke | 113mm |
| Rated power | 86.1kW/2,000rpm |
Hydraulic system
| Main pump | |
| Type | Axial Piston Pumps |
| Maximum flow | 2×126L/min |
Operating Weight
| (Operator, lubricants, antifreeze, full fuel tank and standard features) | |
| Boom | 4,300mm |
| Arm | 2,100mm |
| Bucket | 0.5m³ |
| Operating weight | 12,300kg |
| Maximum digging force (ISO) | |
| Bucket | 8.57/9.10ton |
| Arm | 5.69/6.04ton |

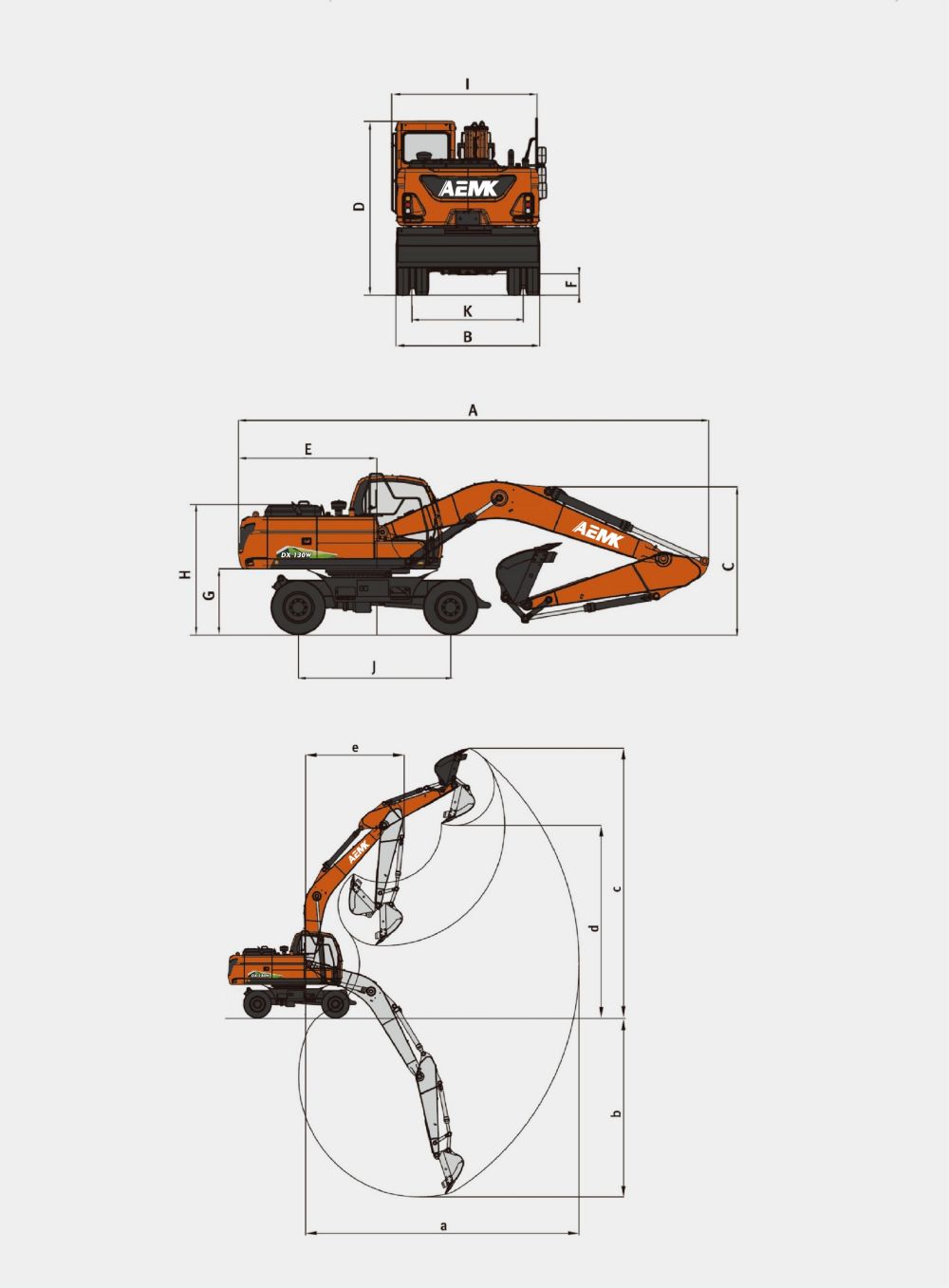

Technical Parameters
| Model | DX130 | ||
| Transport length | A | (mm) | 7,310 |
| Transport width | B | (mm) | 2,523 |
| Transport height (to top of boom) | C | (mm) | 3,250 |
| Overall height (to cab height) | D | (mm) | 3,050 |
| Tail rotation radius | E | (mm) | 2,305 |
| Minimum ground clearance | F | (mm) | 340 |
| Counterweight ground clearance | G | (mm) | 1,206 |
| Hood height (above turntable) | H | (mm) | 2,485 |
| Overall width of cab | I | (mm) | 2,525 |
| Wheelbase | J | (mm) | 2,600 |
| Wheel width | K | (mm) | 1,944 |
| Maximum digging reach | A | (mm) | 7,440 |
| Maximum digging depth | B | (mm) | 4,433 |
| Maximum digging height | C | (mm) | 8,033 |
| Maximum loading height | D | (mm) | 5,701 |
| Minimum rotation radius | E | (mm) | 2,458 |
