QX-2400-4400 Pig Iron Dry Grinding and Cleaning Machine

Equipment Introduction:

This product is mainly used for dry grinding of social scrap steel shearing materials, fire-damaged iron, and oily machine pig iron, to remove surface rust, impurities and oil stains, and obtain clean high-quality furnace materials, achieving the purpose of reducing harmful gas emissions and improving the quality of molten iron.

Main technical parameters：

NO.	Item	Parameters	Remarks
1	Cylinder shape (diameter × length)	Φ2400×4400 mm（Effective length of loading). Made of Q355 manganese plate;	Wall thickness 20+20mm
2	Drive motor power	132 kW
3	Reducer	Hardened tooth surface, ZLY355
4	Hydraulic pump station	5.5kW motor + gear pump
5	Transmission form	Gear ring external meshing (heavy duty)	1 set in total
6	Support form	Roller + roller (heavy duty)	2 sets in total
7	Feed hopper	Top opening width 2.5m, equipped with dust removal pipe and gate.
8	Discharge port	With fully automatic door cover
9	Dust collector and air duct	Bag dust collector (18.5kW motor) + cyclone dust removal	160 bags
10	Electrical control	PLC fully automatic control, variable frequency start and stop, equipped with remote control.
11	Suitable materials for processing	The length, width and height dimensions of the crushed pig iron are all less than 300mm.
12	Output	13-15 tons/barrel (material stacking density 1.8t/m³)
13	Total length of the machine	About 10500 mm
14	Cleaning media	Foam bricks
other	1. No dust spills during operation, absolutely meeting environmental protection standards. 2. After cleaning, the surface of the material is bright and shiny, without dust inclusions, achieving the effect of premium refined furnace material. 3. Equipped with frequency converter, frequency conversion start and frequency conversion control, it protects the motor and saves electricity.

The overall advantages of AEMK dry grinding and cleaning machine are as follows：

1. No dust escapes during operation, fully meeting environmental standards.
2. After cleaning, the material surface is dazzlingly bright and dust-free, achieving the effect of premium refined furnace materia;
3. Equipped with a frequency converter, variable frequency starting and control, it protects the motor and saves energy.

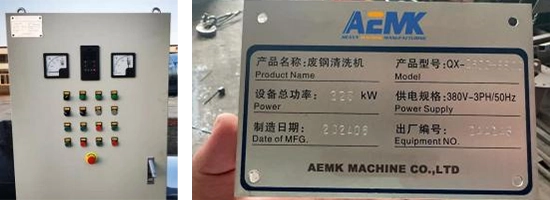

(Control cabinet, machine nameplate)

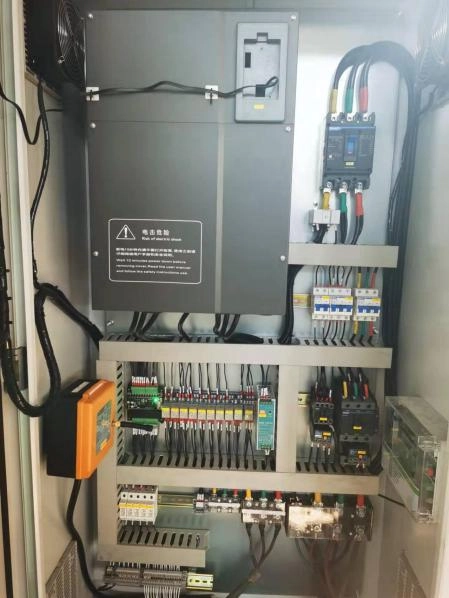

(Inverter, remote control)

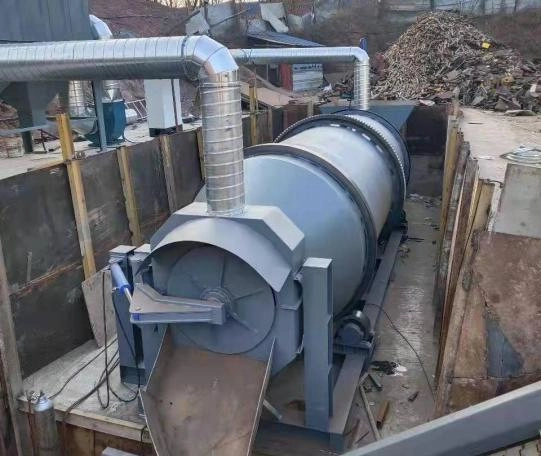

(Host)

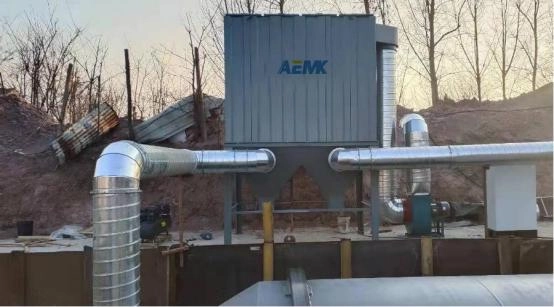

(Dust collector)

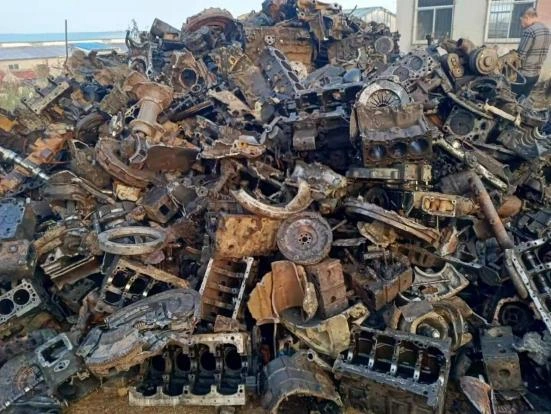

(Cast iron surface effect before cleaning)

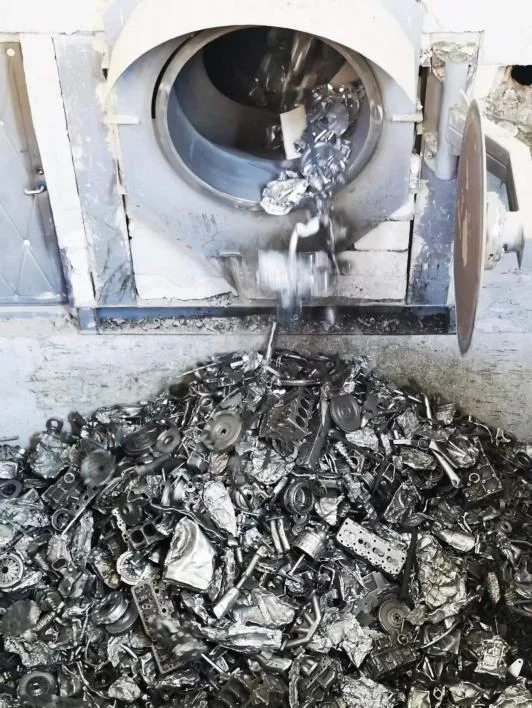

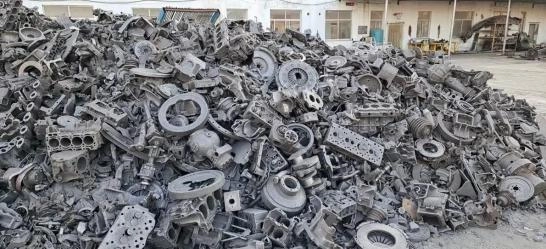

(Surface effect of cast iron after cleaning)
