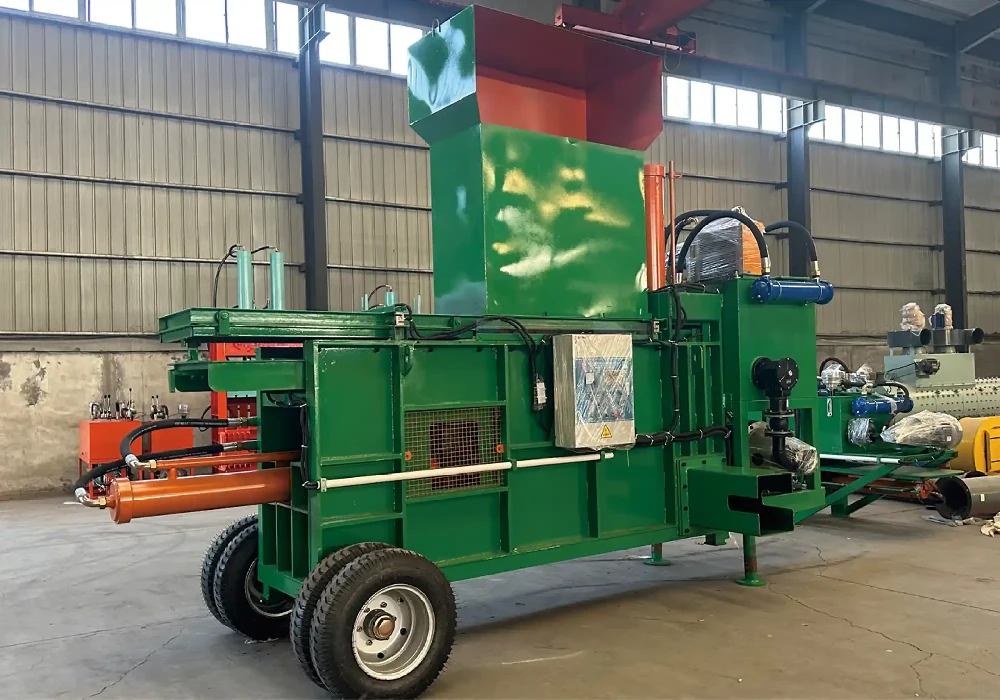

Straw baler

Straw baler

Technical Parameters:

Model No.Feed Inlet Length(mm)Discharge Outlet(mm)1 Cylinder(mm)2 Cylinders(mm)3 Cylinders(mm)Power(kW)Pack Size(mm)External Dimensions(mm)
2 Cylinders1000300*40014014022300400700360026002000
3 Cylinder Medium1200300*40018018021037300400700380029002600
3 Cylinder Large1500*1500350*40018018025045350400700678024004300


How it works:

The material is loaded into the equipment's compression box. It undergoes a first horizontal extrusion by the equipment's horizontal cylinders. Then, it undergoes a second longitudinal extrusion by the equipment's longitudinal cylinders, forming a cuboid block. Finally, the bagging cylinder pushes the compressed block into a bag.

Product Advantages:

1. High-quality relays are used for circuit control, effectively extending the life of the equipment.

2. Made of all steel.

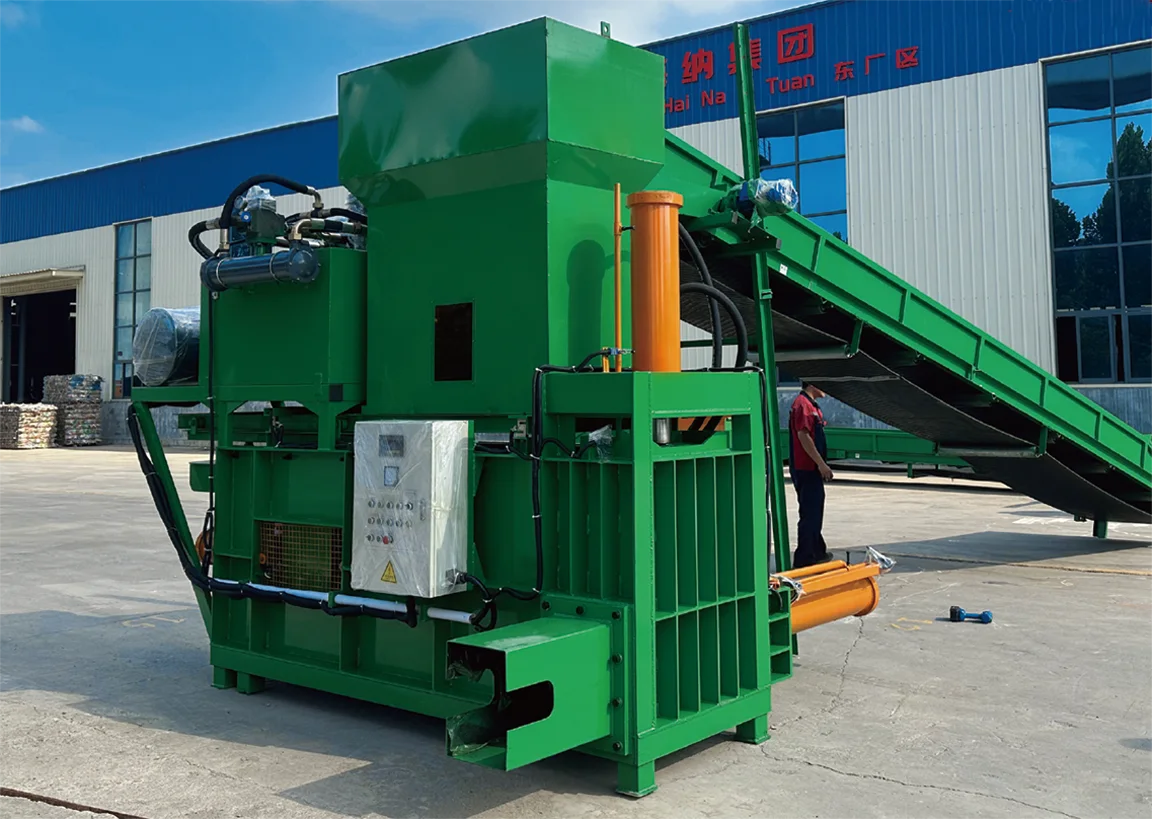

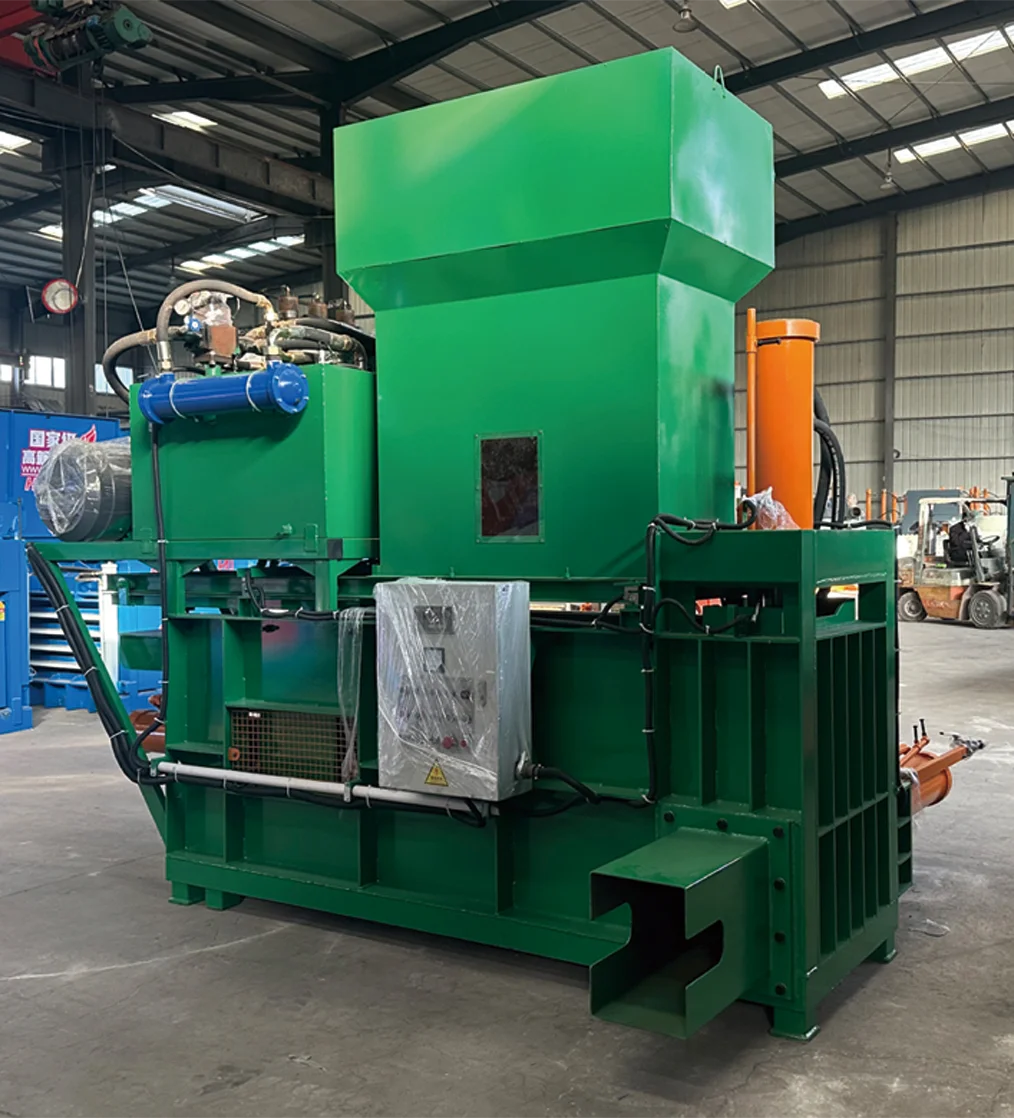

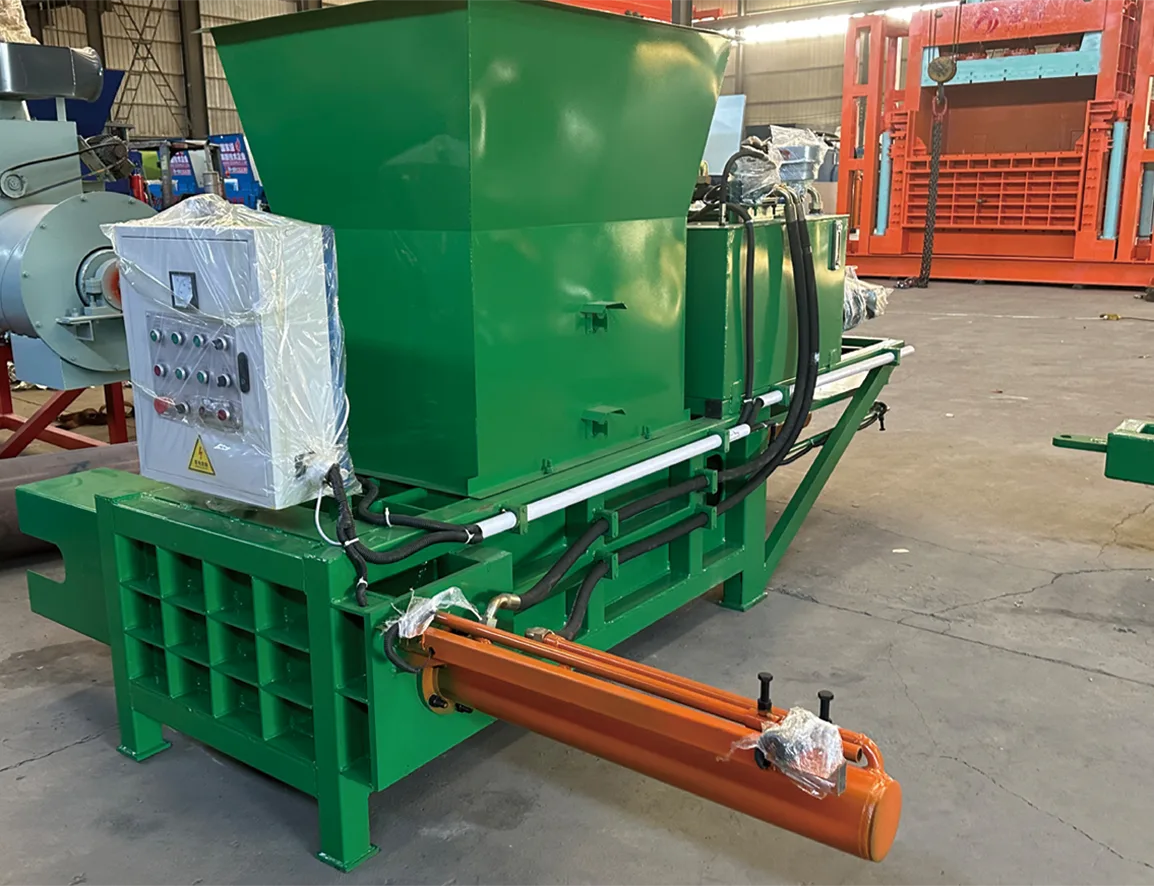

2 (5).webp    3 (5).webp    4.webp


Scope of application:

The silage baler can be used for corn stalks, wheat stalks, rice straw, cotton, wool, waste paper, waste cartons, waste cardboard, yarn, tobacco leaves, plastic, cloth, woven bags, knitted fleece, hemp, sacks, wool tops, wool balls, cocoons, silk, hops, wheat firewood, grass, waste plastic bags and all other light foam and loose materials.

5 (1).webp
