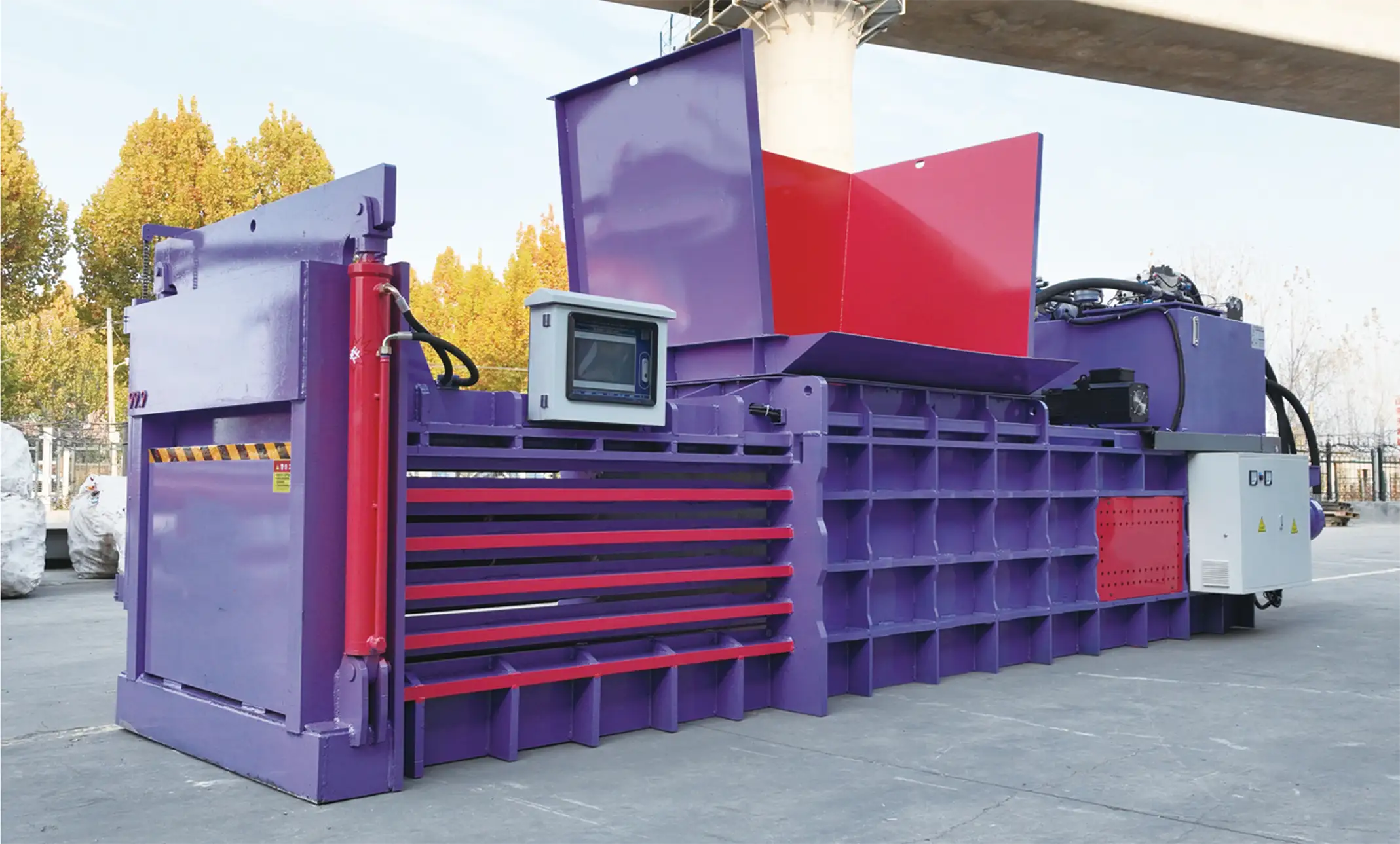

Horizontal Hydraulic Baler - Lifting Door Type -

Technical Parameters:

Model No.	Motor	Hydraulic cylinder(mm)	External Dimensions(mm)	Material box size(mm)	Oil Pump	Conveyor Belt (mm)
QCW-60T	18.5kW	230	720020002400	17001100850	80	5000
QCW-80T	22kW	245	720020002400	17001100850	125	6000
QCW-100T	30kW	280	880020002500	18001100850	125	6000
QCW-125T	30kW	300	880020002500	18001100850	200	9600
QCW-160T	45kW	351	1000022003300	200011001250	Vane pump	9600
QCW-200T	Dual 30kW	377	1000022003400	200011001250	Dual pump	9600

How it works:

A hydraulic baler is a machine that uses liquid static pressure as the working medium and is made according to Pascal's principle to transfer energy to compress metal, plastic, rubber, wood, powder and other products.

Product Advantages:

1. PLC control and push-button operation (remote control possible).

2. Hydraulic door operation with a joystick eliminates the risk of manual door opening, ensuring greater safety.

2 (1).webp

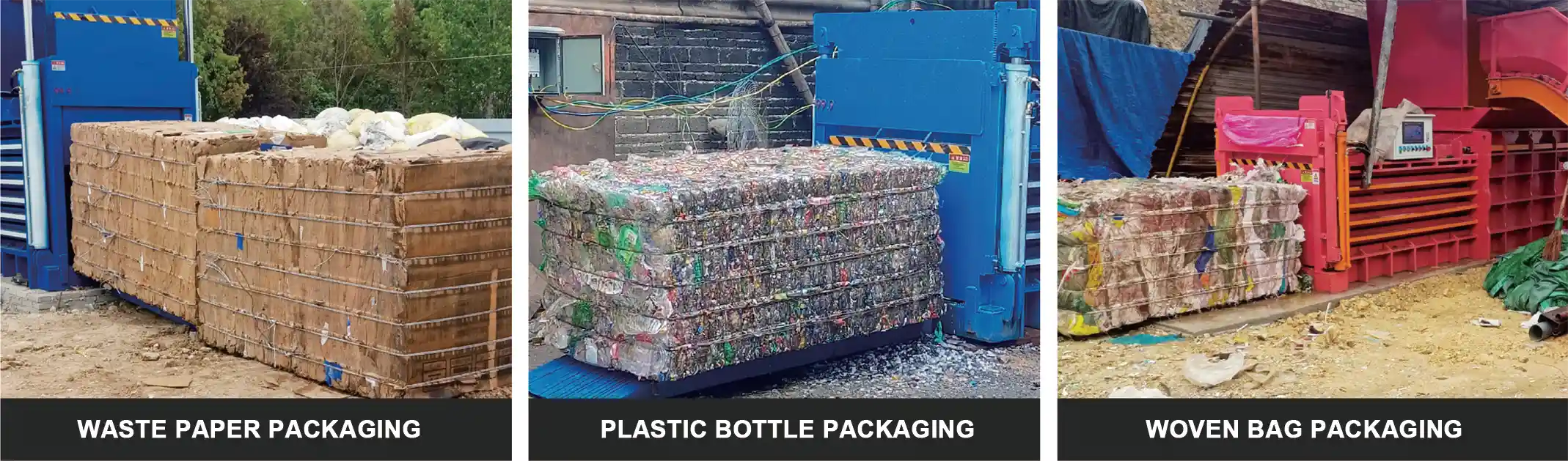

Scope of application:

It has strong applicability and can compress a variety of materials such as cartons, empty bottles, straw, iron sheets, scraps, etc. It has high pressure, packs smoothly, and packs neatly into blocks.

3 (10).webp
