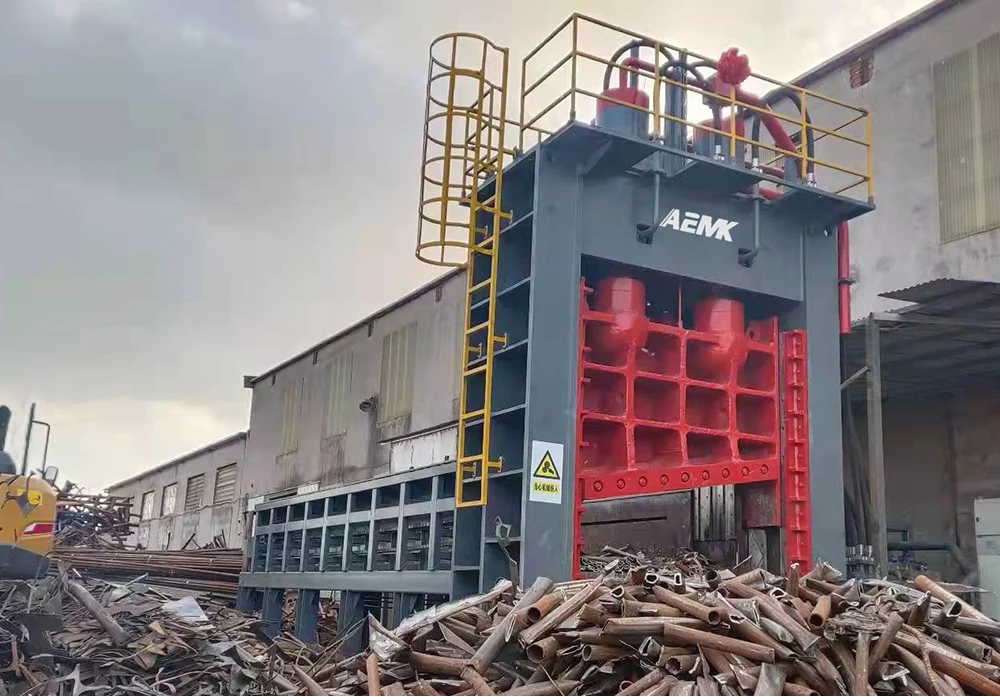

This equipment is mainly used to shear scrapped steel billets,square steels,I-beams,channel steels,steel pipes,and large light metal structural parts made of steel into scrap steel suitable for furnace charges.It is an ideal equipment for steel mills,non-ferrous metal smelting industries, precision casting industries,and raw material manufacturers.

Main technical parameters：

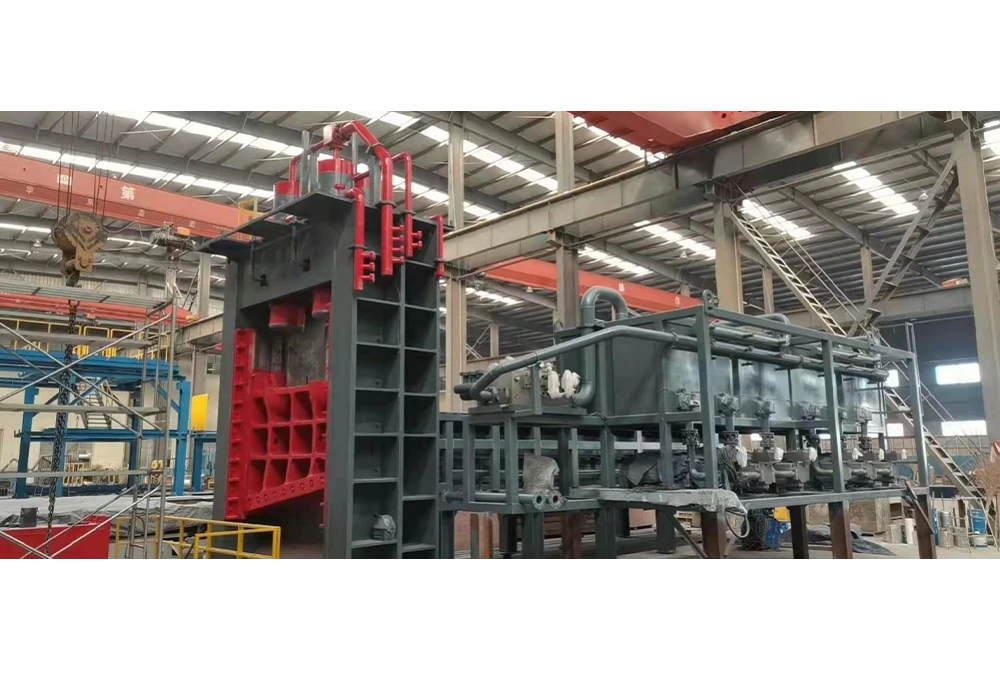

I. Technical Parameters of Q91Y-1000 Scrap Steel Gantry Shearing Machine
1	Shearing cylinder	Main cylinder	YG480/340-1060		Journey	1060 mm		500×2=1000 tons
1	Shearing cylinder	Max. thrust	5000 kN×2		Quantity	2 pcs		500×2=1000 tons
2	Pressing cylinder	Model	YG280/200-1510		Journey	1510 mm		170×2=340 tons
2	Pressing cylinder	Max. thrust	1700 kN×2		Quantity	2 pcs		170×2=340 tons
3	Pushing cylinder	Model	YG250/180-8000		Journey	8000 mm		49 tons
3	Pushing cylinder	Max. thrust	490 kN		Quantity	1 pcs		49 tons
4	Flip cylinder	Model	YG180/120-600		Journey	600 mm		55×2=110 tons
4	Flip cylinder	Max. thrust	550 kN		Quantity	2 pcs		55×2=110 tons
5	Working oil pressure		28.5 MPa (Cut) / 10 MPa (Feeding)
6	Material box size (length × width × height)		8000×2000×900 mm (with cover)
7	Lower blade length / minimum shear opening / maximum shear opening		2100 / 680 / 1000 mm
8	Feeding form		Cylinder pusher
9	Main equipment motor power		3×92 kW
10	Shear angle		10 degrees
11	Maximum shear range (δb≤450 MPa)	Round steel: φ180 mm				Blade middle position
		Square steel: 150×150 mm
		Steel plate: 90×1000 mm
12	Shearing times		About 3 times/minute (no-load theoretical value)
13	Servo motor	Model	ESMG2-92D20CD-A3A1F (huichuan)		Max speed		2000 rpm
13	Servo motor	Rated power	92 kW		Quantity		3 pcs
14	Hydraulic pump	Model	KD-A4VS0250 + A4VS0250 (Guangdong Keda)		Nominal pressure		35 MPa
14	Hydraulic pump	Rated displacement	500 ml/r		Quantity		3 pcs
15	Oil cooler	Cooling type		Air conditioning compressor cooling		Quantity		1 pcs
15	Oil cooler	Nominal pressure		1.6 MPa		Refrigeration capacity		100000 Kcal
16	PLC	Siemens, Germany
17	Hydraulic valve	Large flow intelligent cartridge valve (Jining Taifeng)
18	Pressure sensor	Schneider (original import)
19	Remarks	Equipment oil: about 10,000 liters, 68# high-pressure wear-resistant hydraulic oil is recommended. The upper tool holder is a cast steel tool holder. The purchaser's operation site needs to build a closed air-conditioned room to protect the servo controller.

Overall Advantages of AEMK Gantry Shears

1. High Hydraulic System Pressure: The AEMK gantry shear's hydraulic system has a shearing pressure of 28~29MPa. While ensuring the hydraulic cylinder's designed thrust is achieved, it boasts the fastest operating speed with the same motor power, offering advantages in speed and output compared to similar products.
2. Control System with a Fast Shearing Mode: When shearing sheet metal, a single button switch to fast shearing mode shortens the cylinder's idle time, increasing shearing speed and output while reducing energy consumption.
3. High Hydraulic Cylinder Pressure Resistance: The hydraulic cylinder barrel is forged, with thick walls and few defects, resulting in high pressure resistance. The test pressure is 36.5MPa, providing a high safety factor. The shearing cylinder can operate for extended periods under a working pressure of 29MPa.

(Shearing cylinder)

4. The servo motor uses Shenzhen Huichuan, the industry's leading brand of high-power hydraulic servo motors. These motors are meticulously crafted, undergo strict quality control, ensure stable quality, and offer high speed, large torque, and long lifespan.

(Shenzhen Huichuan Servo Motor)

5. The hydraulic pump adopts the A4V high-speed axial piston pump, which has stable quality, high speed, large displacement, low noise and low failure rate.

(High-speed axial piston pump)

6. The hydraulic valve block adopts Jining Taifeng large-flow intelligent cartridge valve, which has good controllability, good sealing performance, strong pollution resistance, fast response, high working efficiency and strong stability.

(Jining Taifeng Hydraulic Valve Block)

Advantages of the Q91Y-1000 Scrap Steel Gantry Shear

1. The widened and lengthened V-shaped guide rail structure ensures a tight fit between the inner and outer slide rails, resulting in even force distribution and improved guiding of the upper blade holder, preventing blade slippage. The high-strength cast copper slide rails embedded at the four corners of the upper blade holder offer excellent wear resistance, low resistance, and a long service life. The steel triangular slide rails at the four corners of the gantry frame are inlaid with wear-resistant abrasive steel plates for durability. Furthermore, during operation, an automatic lubrication pump automatically lubricates the inner and outer slide rails.

2. The pressing mechanism adopts a concave and convex washboard structure to ensure the smooth operation and durability of the pressing mechanism.

3. The hydraulic oil cooling system adopts compressor cooling, which has good cooling effect, strong environmental adaptability and small footprint. The compressor can automatically start or stop according to the set oil temperature, and compared with water cooling, there is no waste and pollution of water resources, which is more in line with environmental protection requirements.

4. The power system adopts a servo motor and has been optimized in design, which improves mechanical efficiency and motor energy efficiency compared with conventional motors, and reduces the waste of power when waiting for materials, achieving energy savings of 30% to 40% under the premise of the same output.

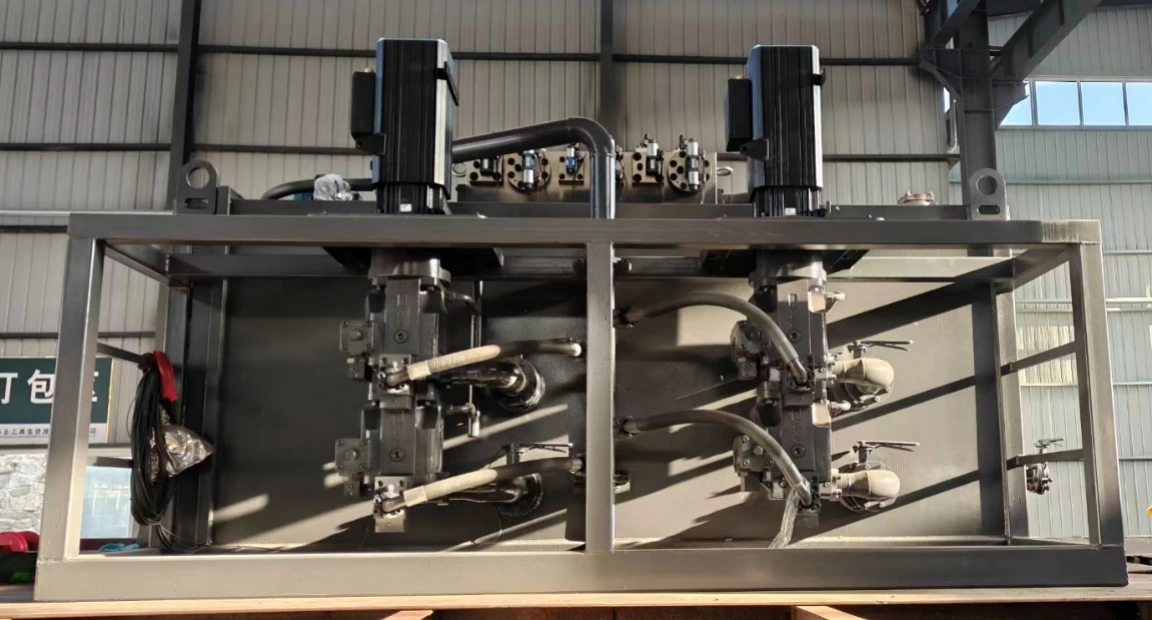

(1000-ton gantry shear pump station)

5. Before welding, the edge of the steel plate at the weld is beveled, and multi-layer and multi-pass welding is used, which has a good welding fusion effect and ensures reliable welding quality. The hydraulic pipeline weld adopts a special welding process, and flaw detection is carried out after welding to ensure that the pipeline is defect-free. The pipeline layout takes into account the fluid resistance factor, is neat and beautiful, and has a small pressure drop.

6. The entire door frame is first welded and machined up, down, left and right, and then closed and welded as a whole, which ensures the accuracy of the door frame and the smoothness of the slide during operation.

7. The equipment is equipped with a fully automatic control system. The core components use Siemens PLC and touch screen imported from Germany. The equipment working parameters are automatically controlled and the operation is simple and easy to learn.

8. The equipment working parameters and status can be displayed intuitively on the interface, which is convenient for equipment monitoring and maintenance and debugging. The entire operation process does not require unnecessary manual intervention. One-button start and stop can also realize independent start of single or multiple motors, truly realizing full-automatic control, which is simple and easy to learn for operators.
Parameters such as material pressing and tool holder lifting height can be set to avoid excessive empty shearing stroke. They can be adjusted according to the actual shearing material, thereby achieving the purpose of improving shearing efficiency and output and avoiding power waste.

(Control System Interface)

9. The main frame structure has been subjected to stress analysis and actual verification, and the safety factor of the whole machine is high, ensuring that the whole machine is sturdy and durable.

10. All hydraulic pipelines are welded using high-pressure pipeline welding technology. The end faces on both sides of the weld are beveled, the base is welded with argon arc welding, and the surface is covered with double-protection welding. After a 24-hour high-pressure test, the surface is pickled to remove impurities on the inner wall to ensure that there are no impurities inside the hydraulic system and it can work smoothly for a long time.

(The steel pipe has grooves on both sides)

(After the inner wall of the steel pipe is pickled and phosphated)

11. The company has large-scale gantry milling and other machining equipment, which can carry out fine processing of the entire gantry to ensure the processing accuracy and quality of the entire equipment.
