QX-2400-6600 Fired Iron Dry Grinding and Cleaning Machine

Equipment Introduction:

This product is mainly used for dry grinding of social scrap steel shearing materials, fire-damaged iron, and oily machine pig iron, to remove surface rust, impurities and oil stains, and obtain clean high-quality furnace materials, achieving the purpose of reducing harmful gas emissions and improving the quality of molten iron.

Main technical parameters：

NO.	Item	Parameters	Remarks
1	Cylinder body (diameter x length)	Φ2400 × 6600 mm (effective charging length)	wall thickness20mm
2	Inner lining	NM400 wear-resistant plate, welded to the inner wall of the drum	wall thickness 10mm
3	Drive motor power	160 kW
4	Reducer	Hardened tooth surface, ZLY 400
5	Hydraulic pump station	5.5 kW motor + gear pump
6	Transmission type	External meshing gear ring (heavy-duty)	1 group in total
7	Support type	Idler + roller (heavy-duty)	2 group in total
8	Feed hopper	Top opening width 2.5m, equipped with dust collection pipe and gate
9	Discharge port	With door (remote control opening and closing)
10	Dust collector and air duct	Bag-type dust collector (260 bags) + cyclone dust collector	30 kW
11	Electrical control	Fully automatic PLC control, variable frequency start and stop, and remote
12	Suitable materials for processing	Fire-burned iron
13	Production capacity	8-10 tons/barrel
14	Overall machine length	Approximately 12,700 mm
15	Mainframe noise reduction chamber	A noise reduction room is constructed outside the main unit.	Buyer's own

The overall advantages of AEMK dry grinding and cleaning machine are as follows：

1. No dust escapes during operation, fully meeting environmental standards.
2. After cleaning, the material surface is dazzlingly bright and dust-free, achieving the effect of premium refined furnace materia;
3. Equipped with a frequency converter, variable frequency starting and control, it protects the motor and saves energy.

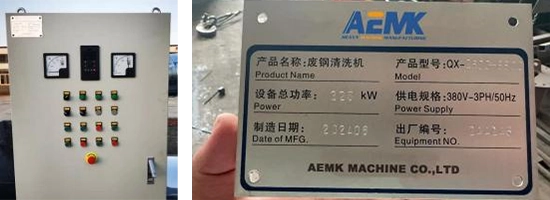

(Control cabinet, machine nameplate)

(Inverter, remote control)

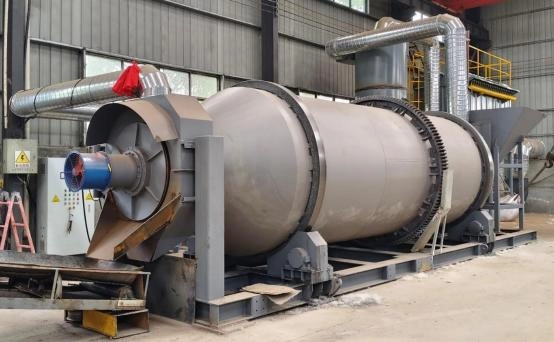

(Host)

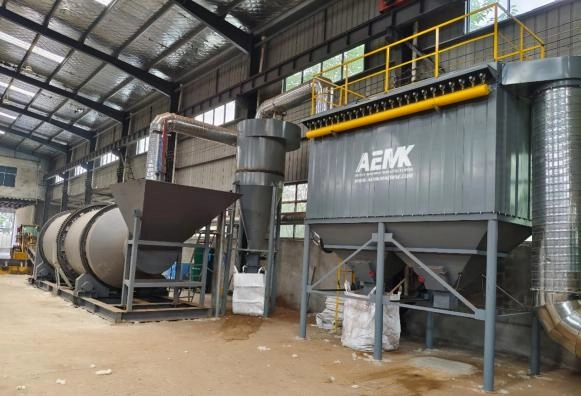

(dust collector)

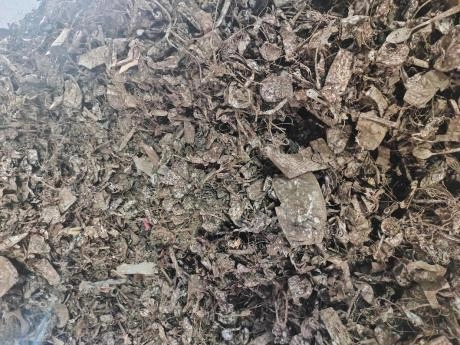

(Fire-burned iron before cleaning)

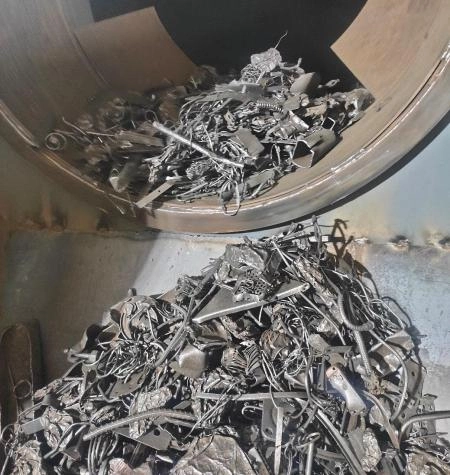

(Fire-burned iron after dry grinding)
