This equipment is mainly used to shear scrapped steel billets,square steels,I-beams,channel steels,steel pipes,and large light metal structural parts made of steel into scrap steel suitable for furnace charges.It is an ideal equipment for steel mills,non-ferrous metal smelting industries, precision casting industries,and raw material manufacturers.

Main technical parameters：

Technical Parameters of Q91Y-800 Scrap Steel Gantry Shearing Machine
1	Shearing cylinder	Main cylinder	YG420/280-1060		Itinerary	1060 mm		400×2=800 tons
1	Shearing cylinder	Max thrust	4000 kN×2		Quantity	2 Unit		400×2=800 tons
2	Pressure cylinder	Model	YG250/180-1510		Itinerary	1510 mm		150×2=300 tons
2	Pressure cylinder	Max thrust	1500 kN×2		Quantity	2 Unit		150×2=300 tons
3	Pusher cylinder	Model	YG250/180-8000		Itinerary	6000 mm		49 tons
3	Pusher cylinder	Max thrust	490 kN		Quantity	1 Unit		49 tons
4	Flip-top cylinder	Model	YG180/120-600		Itinerary	600 mm		55×2=110 tons
4	Flip-top cylinder	Max thrust	550 kN		Quantity	2 Unit		55×2=110 tons
5	Working hydraulic pressure		28.5 MPa (shearing) / 10 MPa (feeding)
6	Gate dimensions (L×W×H)		8000×2000×900 mm (with lid)
7	Cut length / Min shearing opening / Max shearing opening		2100 mm / 680 mm / 1000 mm
8	Feeding method		Hydraulic cylinder pusher
9	Main equipment motor power		2×92 kW
10	Shearing angle		10 degrees
11	Maximum shearing range (δb≤450 MPa)	Round steel: φ150 mm				Center position of blade
		Square steel: 130×130 mm
		Steel plate: 70×1000 mm
12	Number of shearing cycles		3 times/minute (theoretical value without load)
13	Servo Motor	Model	ESMG2-92D20CD-A3A1F	Max speed	2000 rpm		Brand: Shenzhen Huichuan
13	Servo Motor	Rated power	92 kW	Quantity	2 Unit		Brand: Shenzhen Huichuan
14	High-speed hydraulic pump	Model	KD-A4VS0250 + A4VS0250	Nominal pressure	35 MPa		Brand: Guangdong Keda
14	High-speed hydraulic pump	Rated displacement	500 ml/r	Quantity	2 Unit		Brand: Guangdong Keda
15	Oil cooler	Cooling type	Air conditioning compressor cooling	Quantity	1 item		Nominal pressure	1.6 MPa
15	Oil cooler	Cooling type	Air conditioning compressor cooling	Quantity	1 item		Cooling capacity	50000 Kcal
16	PLC	Siemens (Germany)
17	Hydraulic valve	Jining Taifeng, High-Flow Intelligent Cartridge Valve.
18	Pressure sensor	Schneider Electric (Original Import)
19	Remarks	Equipment oil: approximately 8000 liters, recommend 46# high-pressure anti-wear hydraulic oil. Upper tool post is made using a casting method. The customer's work site needs a sealed air-conditioned room to protect the servo controller.

Overall Advantages of AEMK Gantry Shears

1. High Hydraulic System Pressure: The AEMK gantry shear's hydraulic system has a shearing pressure of 28~29MPa. While ensuring the hydraulic cylinder's designed thrust is achieved, it boasts the fastest operating speed with the same motor power, offering advantages in speed and output compared to similar products.
2. Control System with a Fast Shearing Mode: When shearing sheet metal, a single button switch to fast shearing mode shortens the cylinder's idle time, increasing shearing speed and output while reducing energy consumption.
3. High Hydraulic Cylinder Pressure Resistance: The hydraulic cylinder barrel is forged, with thick walls and few defects, resulting in high pressure resistance. The test pressure is 36.5MPa, providing a high safety factor. The shearing cylinder can operate for extended periods under a working pressure of 29MPa.

(Shearing cylinder)

4. The servo motor uses Shenzhen Huichuan, the industry's leading brand of high-power hydraulic servo motors. These motors are meticulously crafted, undergo strict quality control, ensure stable quality, and offer high speed, large torque, and long lifespan.

(Shenzhen Huichuan Servo Motor)

5. The hydraulic pump adopts the A4V high-speed axial piston pump, which has stable quality, high speed, large displacement, low noise and low failure rate.

(High-speed axial piston pump)

6. The hydraulic valve block adopts Jining Taifeng large-flow intelligent cartridge valve, which has good controllability, good sealing performance, strong pollution resistance, fast response, high working efficiency and strong stability.

(Jining Taifeng Hydraulic Valve Block)

Detailed Introduction to AEMK Hydraulic Gantry Shear

1. The wide V-shaped guide rail structure ensures a tight fit between the inner and outer slide rails, resulting in even force distribution. The inner high-wear-resistant cast copper slide rail is wear-resistant, has low resistance, and a long service life. The outer four corner triangular slide rails are inlaid with wear-resistant steel plates for durability. Furthermore, during operation, an automatic lubrication pump automatically lubricates both the inner and outer slide rails.

2. The material pressing mechanism employs a corrugated, washboard-like structure to ensure smooth operation and durability.

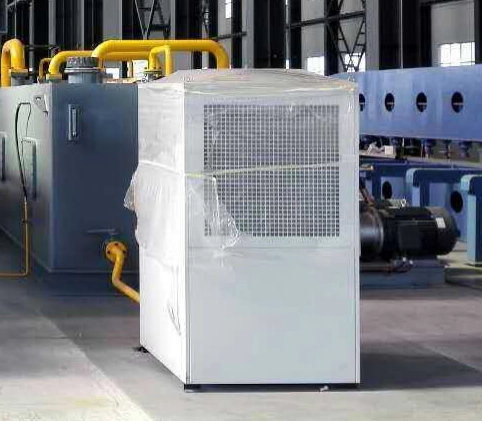

3. The hydraulic oil cooling system adopts a forced cooling method using a compressor, which provides excellent cooling performance, strong environmental adaptability, and a small footprint. The compressor can automatically start or stop according to the set oil temperature, and compared with water cooling, it avoids water waste and pollution, making it more environmentally friendly.

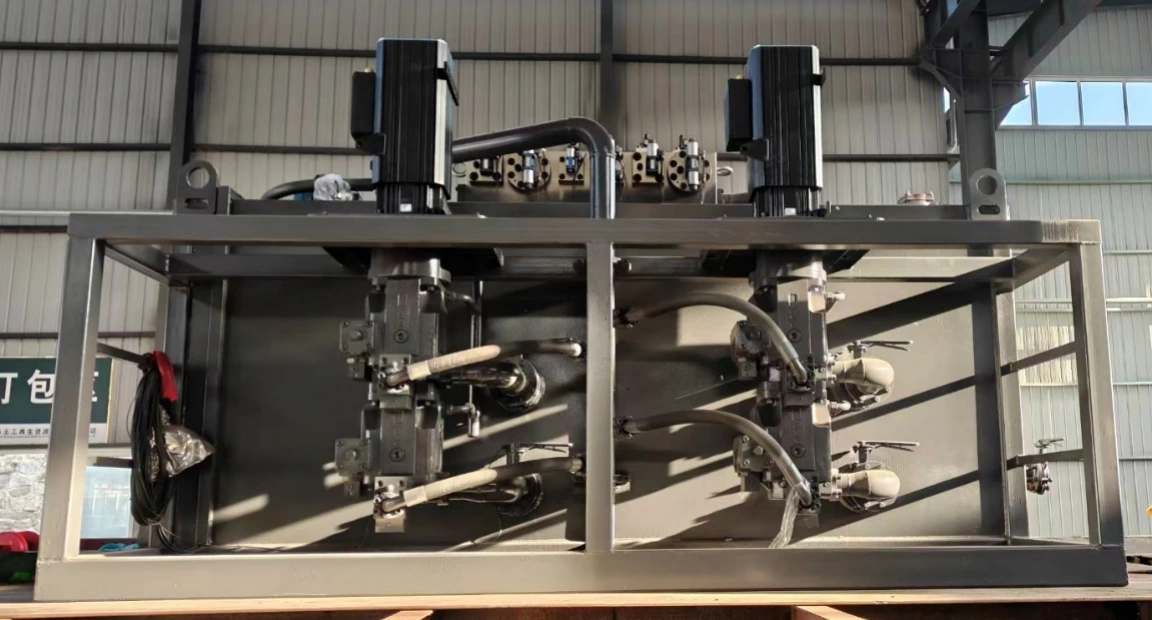

4. The power system adopts a servo motor and has been optimized in design, which improves mechanical efficiency and motor energy efficiency compared with conventional motors, and reduces the waste of power when waiting for materials, achieving energy savings of 30% to 40% under the premise of the same output.

(800 ton gantry shear pump station)

5. Before welding, the edges of the steel plates at the weld seams are beveled, and multi-layer, multi-pass welding is employed, resulting in excellent fusion and reliable weld quality.

6. The entire gantry frame is first welded and machined separately on the top, bottom, left, and right sides, then assembled and welded as a whole. This ensures the gantry frame's precision and guarantees smooth operation of the sliding track.

7. The equipment is equipped with a fully automatic control system. Core components utilize imported German Siemens PLCs and touchscreens. Operating parameters are automatically controlled, and operation is simple and easy to learn.

8. Equipment operating parameters and status are displayed intuitively on the interface, facilitating equipment monitoring, maintenance, and debugging. The entire operation requires no manual intervention; one-button start and stop are available. Single or multiple motors can be started independently, achieving truly fully automatic control. The equipment is easy for operators to learn.
The equipment features a fast shearing mode, activated with a single button. This avoids excessive empty shearing strokes, improving shearing efficiency and output while preventing power waste.

(Control System Interface)

9. The main frame structure has undergone stress analysis and practical verification, ensuring a high safety factor and robust durability.

10. All hydraulic lines utilize high-pressure welding technology. The weld ends are beveled, with argon arc welding for the root pass and MIG welding for the cap pass. Surface pickling removes impurities from the inner wall, ensuring a clean hydraulic system and stable long-term operation.

(Beveling on both ends of the steel pipe)

(After pickling and phosphating the inner wall of the steel pipe)

11. The company possesses large-scale gantry milling machines and other machining equipment, capable of precision machining the entire gantry frame to ensure the machining accuracy and quality of the entire equipment.
