Main specifications
| Machine Rating | |
| Rated Operating Capacity | 869 kg |
| Tipping Load | 1793 kg |
| Pump Capacity | 76.8 l/min |
| System Relief at Quick Couplers | 23.8-24.5 Mpa |
| Travelling Speed (MAX) | 11.3/19.3 km/h |
| Maximum Power @2700 rpm | 35.5 kW (48hp) |
| Torque @1600 rpm | 158.6 Nm |
| Operating Weight | 2990 kg |
Basic parameters
| Engine | |
| Make / Model | YANMAR/4TNV94 |
| Fuel | Diesel |
| Cooling | Liquid |
| Number of Cylinders | 4 |
| Displacement | 3.05 L |
| Fuel Tank | 68 L |
| Drive System | |
| Transmission | Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors |
| Controls | |
| Vehicle Steering | Direction and speed controlled by left-hand levers |
| Loader Hydraulics Tilt and Lift | Controlled by right hand levers |
| Front Auxiliary (standard) | Electrical switch on right-hand steering lever |

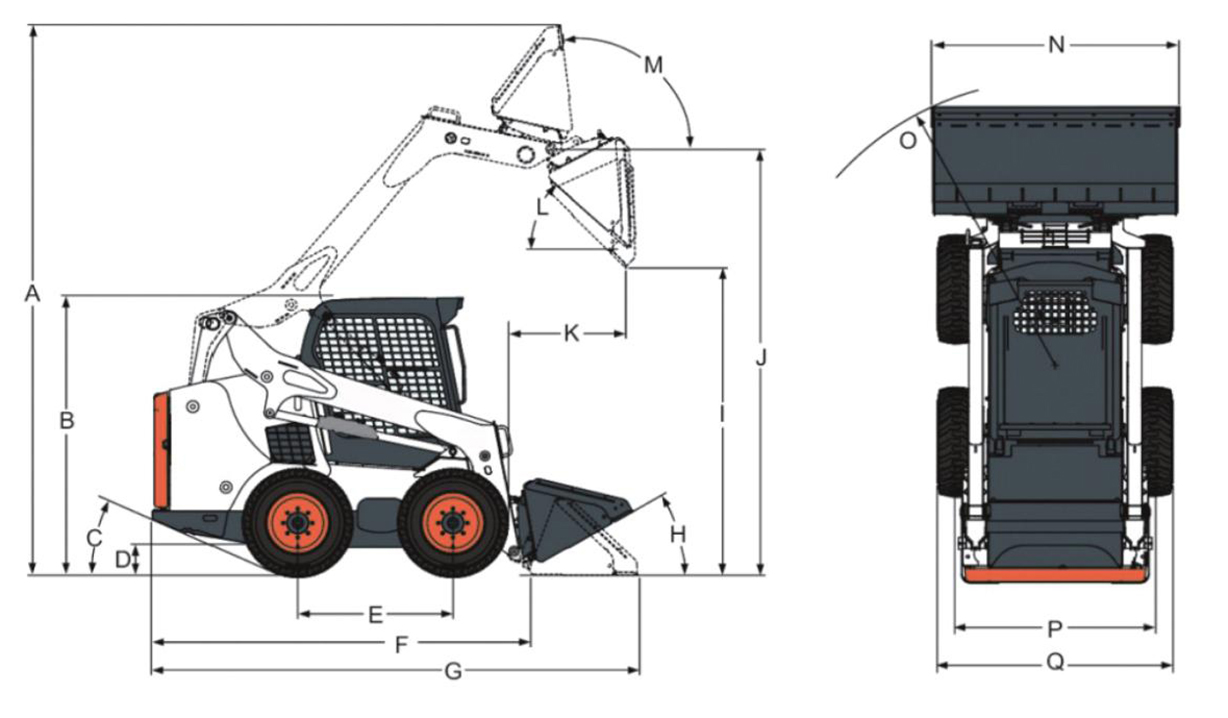

| Dimensions | |
| A | 3980mm |
| B | 2150mm |
| C | 25° |
| D | 185mm |
| E | 1075mm |
| F | 2660mm |
| G | 3470mm |
| H | 30° |
| I | 2250mm |
| J | 3120mm |
| K | 880mm |
| L | 42° |
| M | 97° |
| N | 1735mm |
| O | 2088mm |
| P | 1190mm |
| Q | 1705mm |
