Main Specifications
| Operating weight | 36,400kg |
| Engine | |
| Model | Cummins |
| Number of cylinders | 5 |
| Rated power | 214kW/1,800rpm |
| Bore | 130mm |
| Stroke | 140mm |
| Emission standard | National IV |
| Hydraulic system | |
| Type | FEH fully electric control |
| Maximum flow | 2×350L/min |
| Rotation system | |
| Rotation speed | 9.2rpm |
| Maximum rotation torque | 13,600kgf.m |
| Running part | |
| Running speed (high/low) | 5.4/3.3km/hr |
| Number of track shoes | 48 blocks per side |
| Running rollers | 2 blocks per side |
| Screw wheel | 9 blocks per side |
| Track shoe width | 600mm |
| Cylinder | |
| Boom | 2-150×100×1,450mm |
| Arm | 1-170×120×1,805mm |
| Bucket | 1-145×95×1,300mm |
| Maximum digging force (ISO) | |
| Bucket | 24.4ton(240KN) |
| Arm | 20.5ton(201KN) |
| Fuel tank capacity | |
| Fuel tank | 581L |
| Hydraulic oil tank | 385L |
| Coolant | 50L |
| Engine | 38L |
| Running reduction gear oil | 2X7L |
| Rotation reducer | 8L |
| Optional configuration | |
| Arm | 3,200mm |
| Bucket | 1.71m |
| Crushing configuration | Crushing pipeline + electronic pedal + oil return filter |

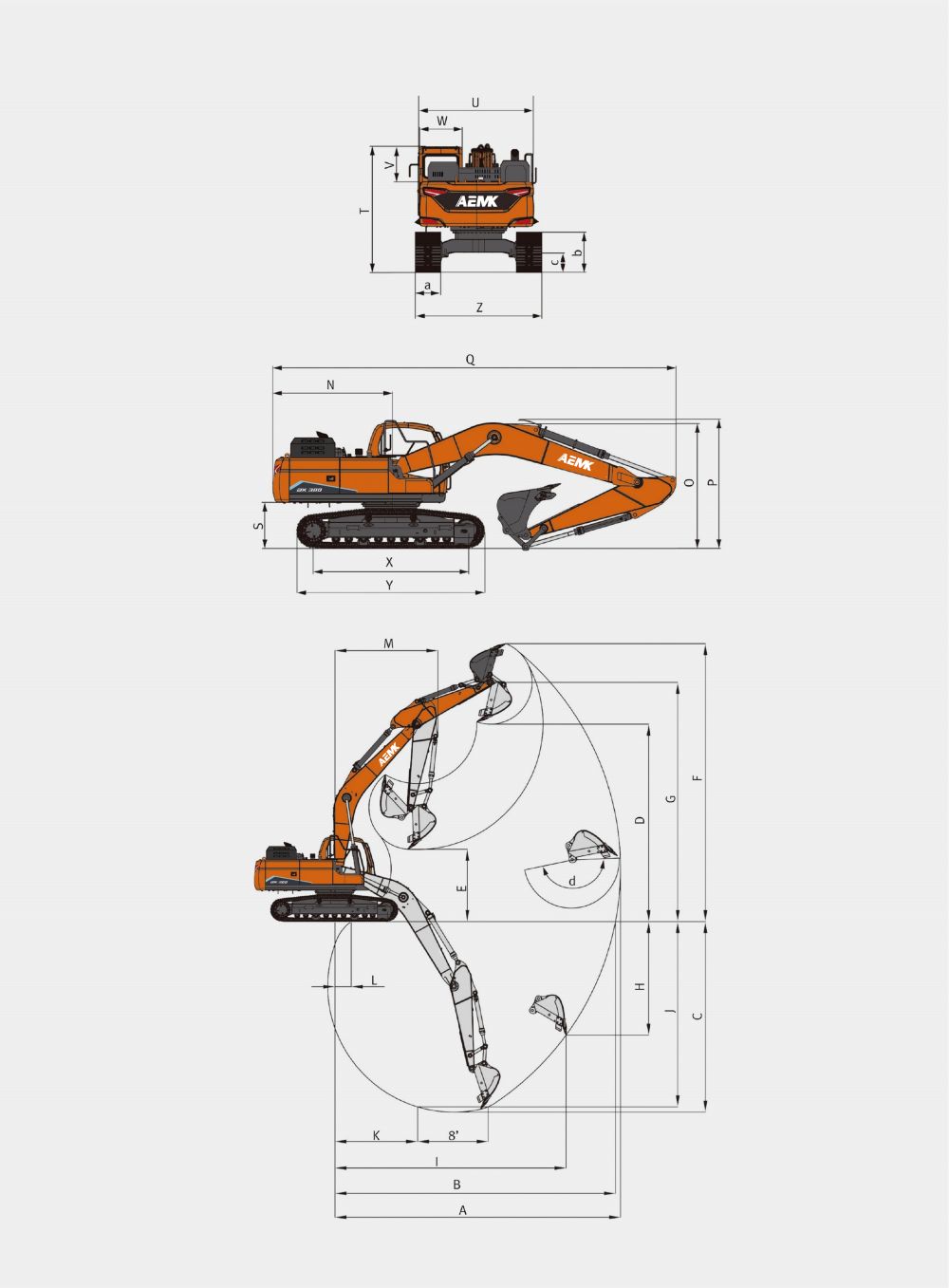

Technical Parameters
| Model | DX380 | |||
| Boom | (mm) | 6,500 | 6,500 | |
| Forearm | (mm) | 2,900 | 3,200 | |
| Bucket | (m³) | 1.95 | 1.71 | |
| Breaker | (mm) | 165/175 | 165/175 | |
| Maximum digging distance | A | (mm) | 11,035 | 11,168 |
| Maximum digging distance at ground level | B | (mm) | 10,836 | 10,895 |
| Maximum digging depth | C | (mm) | 7,292 | 7,461 |
| Maximum loading height | D | (mm) | 7,431 | 7,196 |
| Minimum loading height | E | (mm) | 3,082 | 2,779 |
| Maximum digging height | F | (mm) | 10,396 | 10,120 |
| Maximum bucket pin height | G | (mm) | 9,191 | 8,889 |
| Maximum vertical arm digging depth | H | (mm) | 3,744 | 3,783 |
| Maximum vertical radius | I | (mm) | 9,337 | 9,342 |
| Maximum digging depth on 8-foot flat ground | J | (mm) | 7,101 | 7,347 |
| Minimum digging radius on 8-foot flat ground | K | (mm) | 3,450 | 3,512 |
| Minimum digging distance | L | (mm) | 1,774 | 1,393 |
| Minimum rotation radius | M | (mm) | 4,373 | 4,401 |
| Bucket extension angle | d | (°) | 173 | 173 |
| Tail rotation radius | N | (mm) | 3,530 | 3,530 |
| Transport height (to top of boom) | O | (mm) | 3,490 | 3,490 |
| Transport height (to top of hose) | P | (mm) | 3,560 | 3,560 |
| Transport length | Q | (mm) | 11,296 | 11,345 |
| Transport width | R | (mm) | 3,280 | 3,280 |
| Counterweight ground clearance | S | (mm) | 1,180 | 1,180 |
| Overall height (to the top of the cab) | T | (mm) | 3,100 | 3,100 |
| Turntable width | U | (mm) | 3,155 | 3,155 |
| Cab height (above the turntable) | V | (mm) | 853 | 853 |
| Cab full width | W | (mm) | 1,010 | 1,010 |
| Distance between guide wheels and drive wheels | X | (mm) | 4,040 | 4,040 |
| Track length | Y | (mm) | 4,940 | 4,940 |
| Overall width (retracted tracks/extended tracks) | Z | (mm) | 3,280 | 3,280 |
| Track width | a | (mm) | 600 | 600 |
| Track height | b | (mm) | 970 | 970 |
| Minimum ground clearance | C | (mm) | 475 | 475 |
